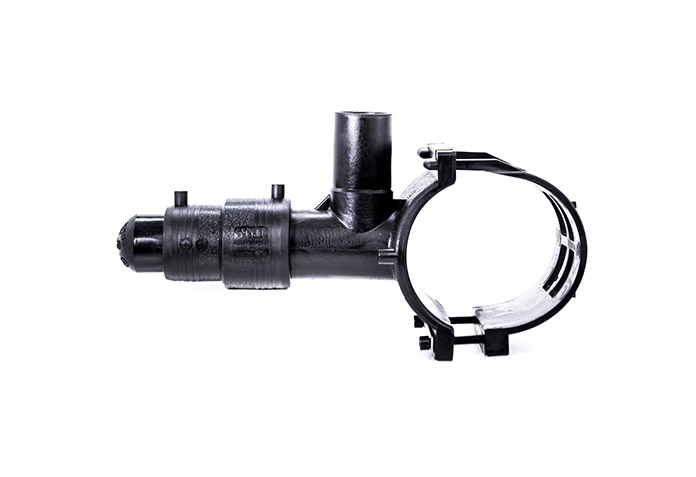

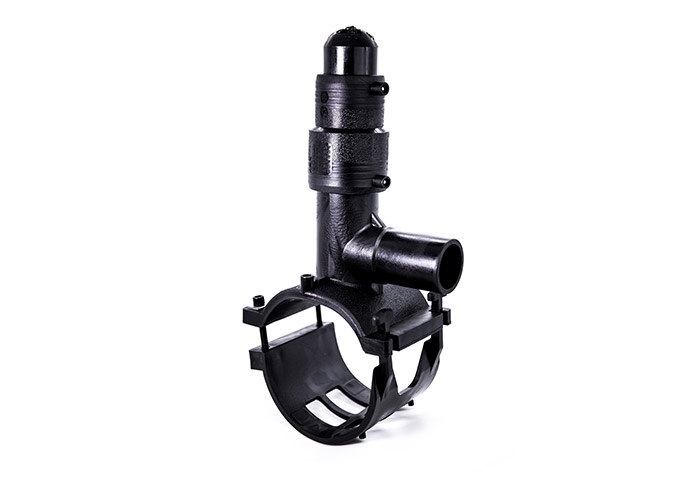

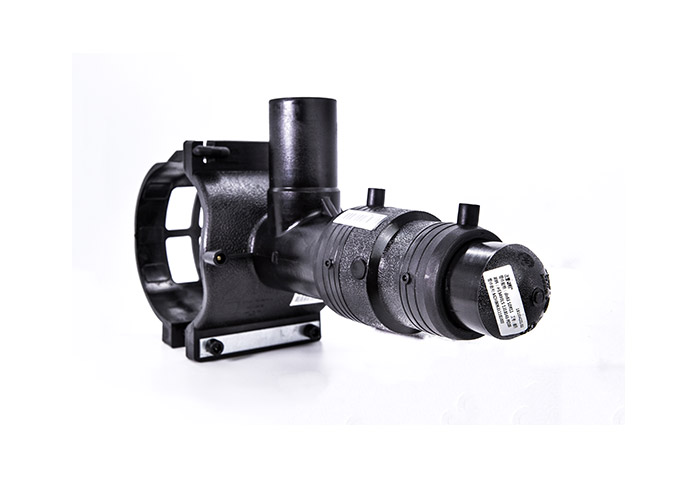

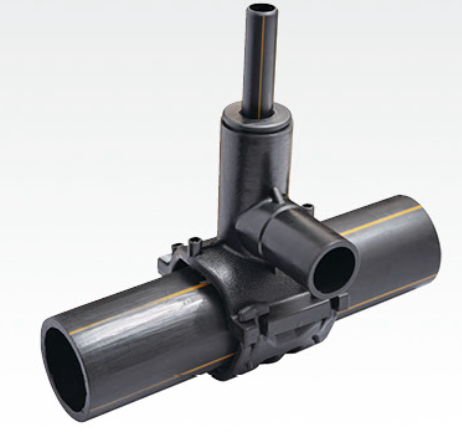

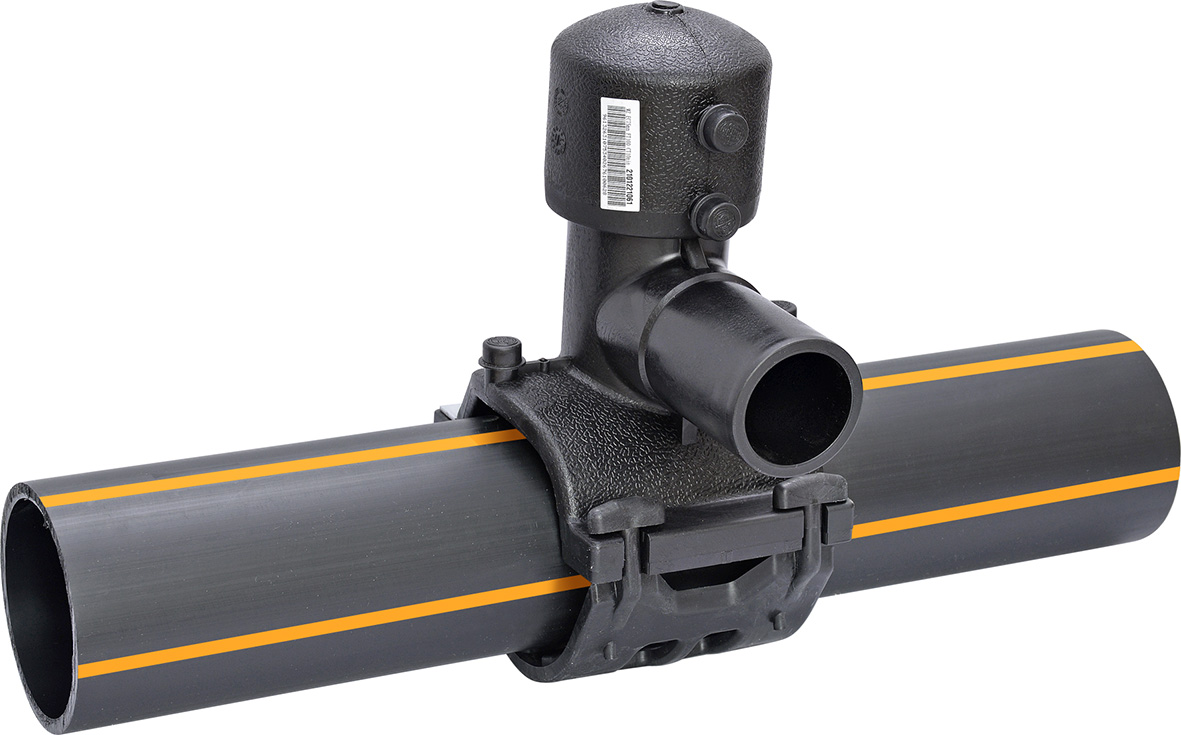

Tapping Saddle
The product melting zone is designed far wider than the requirements of GB/ISO standards, thus providing the system with a higher safety factor.

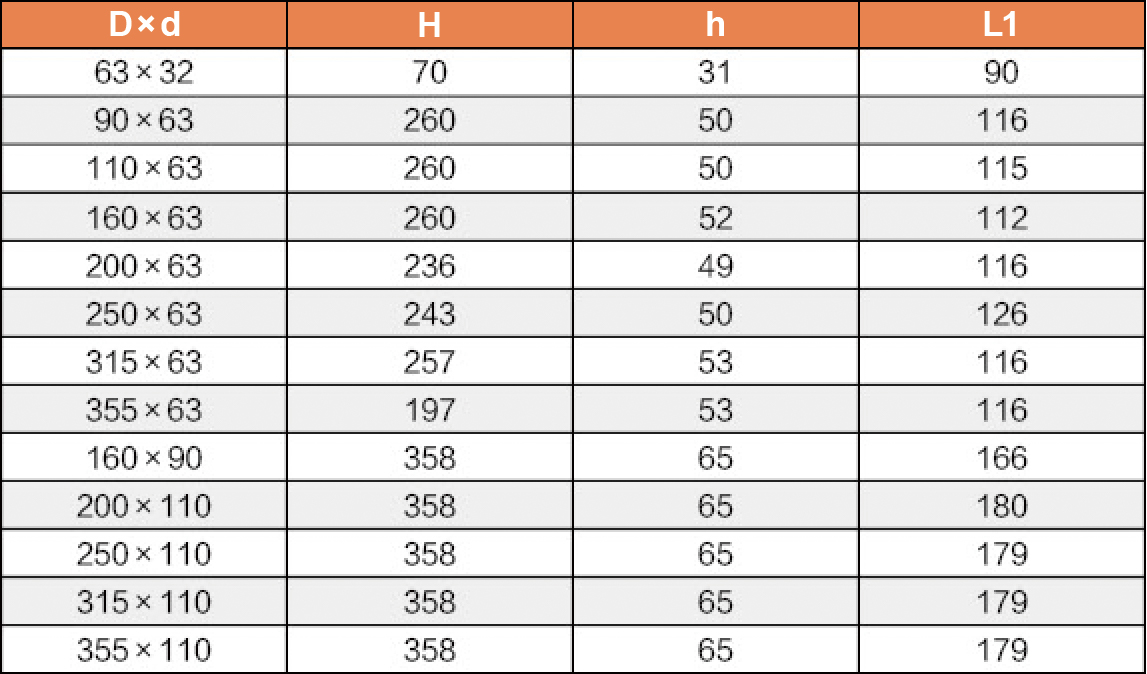

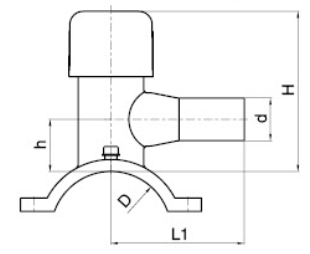

Specification
Fittings meet standards (GB/T 15558.3/GB/T13663.3/EN1555.3/EN12201.3/ISO4437.3/S04427.3/GIS PL2-4).
PE100 fittings are used for gas transmission and distribution pressure up to 0.8MPa, and for water transmission and distribution pressure up to 1.6MPa.
PE80 fittings are used for gas transmission and distribution pressure up to 0.64MPa, and for water transmission and distribution pressure up to 1.25MPa.
The welding voltage is 40V, the terminal is 4.0mm, and the barcode on the fitting provides the optimal welding parameters.
It is certified by BSI Kitemark.
