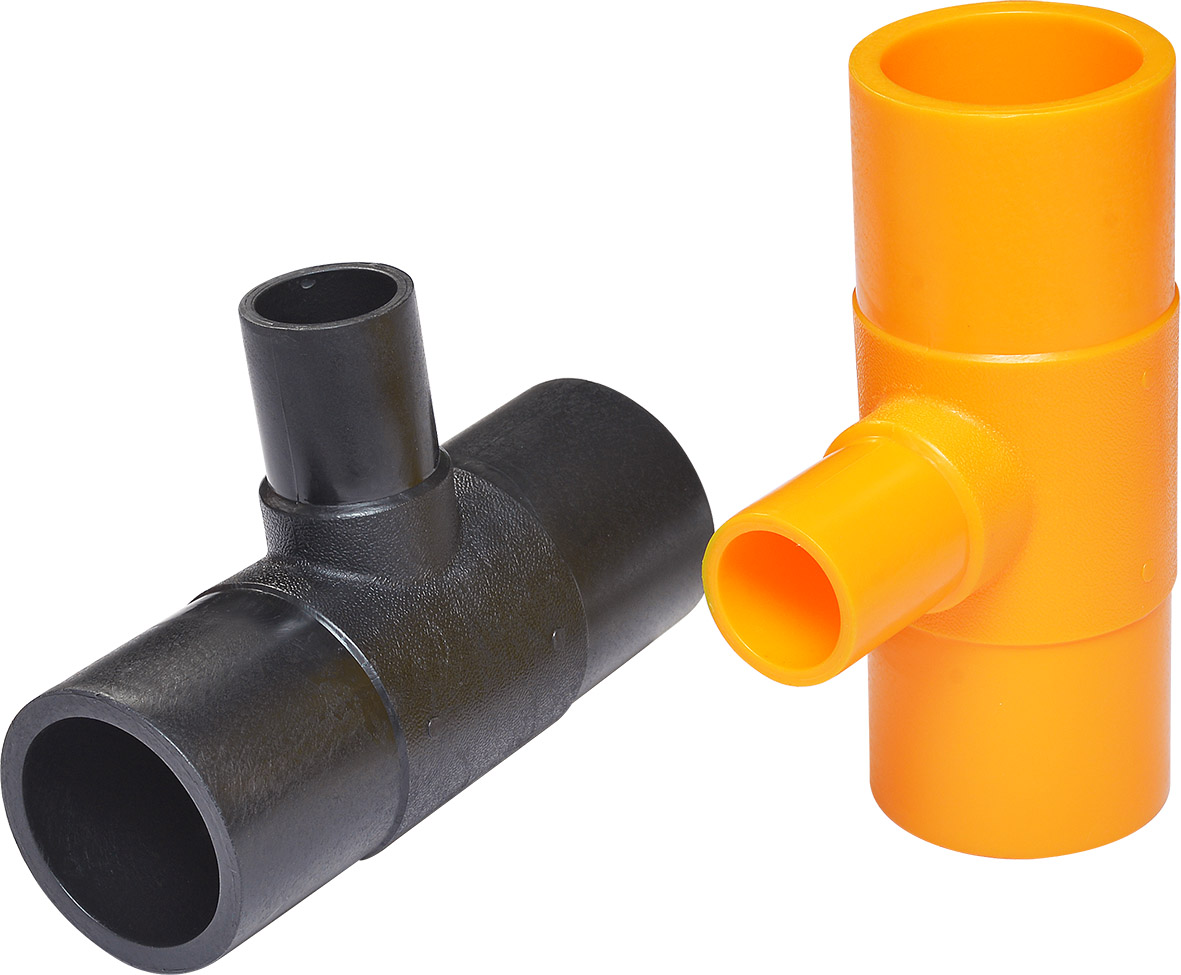

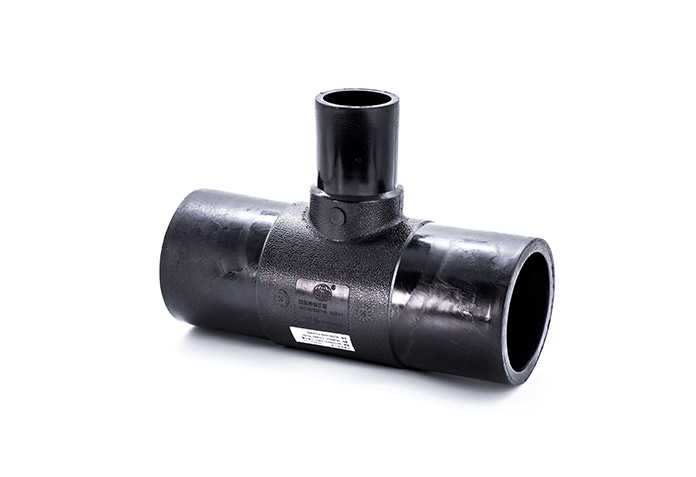

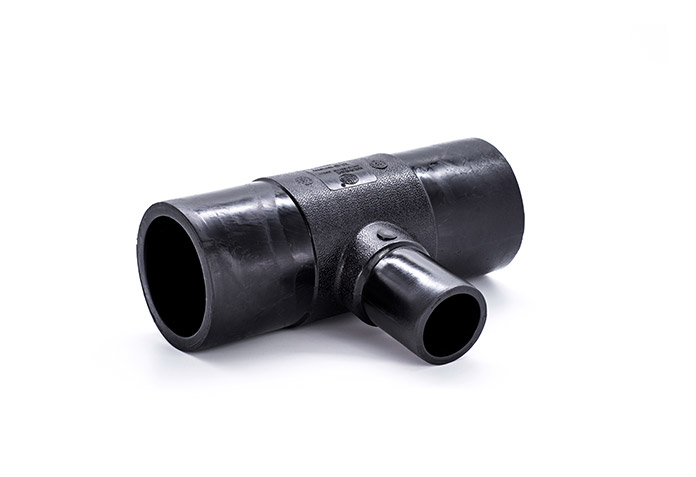

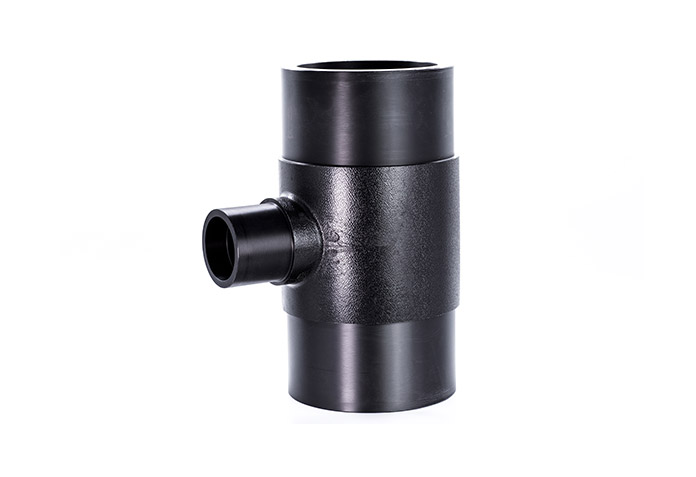

Reducer Tee SDR11
Applicable Standards: GB/T 15558.3, GB/T 13663.3, EN 1555.3, EN 12201.3, ISO 4437.3, ISO 4427.3
Note: The length of the tubular section in the fusion zone can be extended by welding upon request.
It is certified by BSI Kitemark.
Note: The length of the tubular section in the fusion zone can be extended by welding upon request.
It is certified by BSI Kitemark.
Specification
Material: PE100, PE80
Standard Dimension Ratio (SDR): SDR11, SDR17 (Other series can be customized)
Operating Temperature: -20°C to +40°C
Working Pressure:
PE100 SDR11: Gas 0.8 MPa / Water Supply 1.6 MPa
PE100 SDR17: Gas 0.5 MPa / Water Supply 1.0 MPa
PE80 SDR11: Gas 0.64 MPa / Water Supply 1.25 MPa
PE80 SDR17: Gas 0.4 MPa / Water Supply 0.8 MPa
Jointing Method: Butt fusion or Electrofusion
