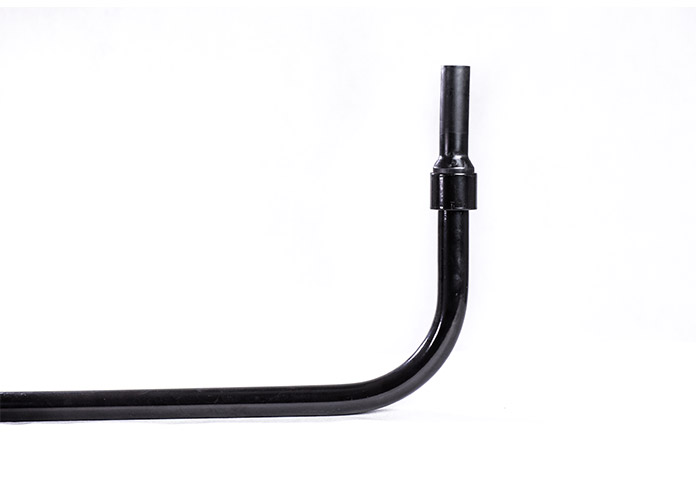

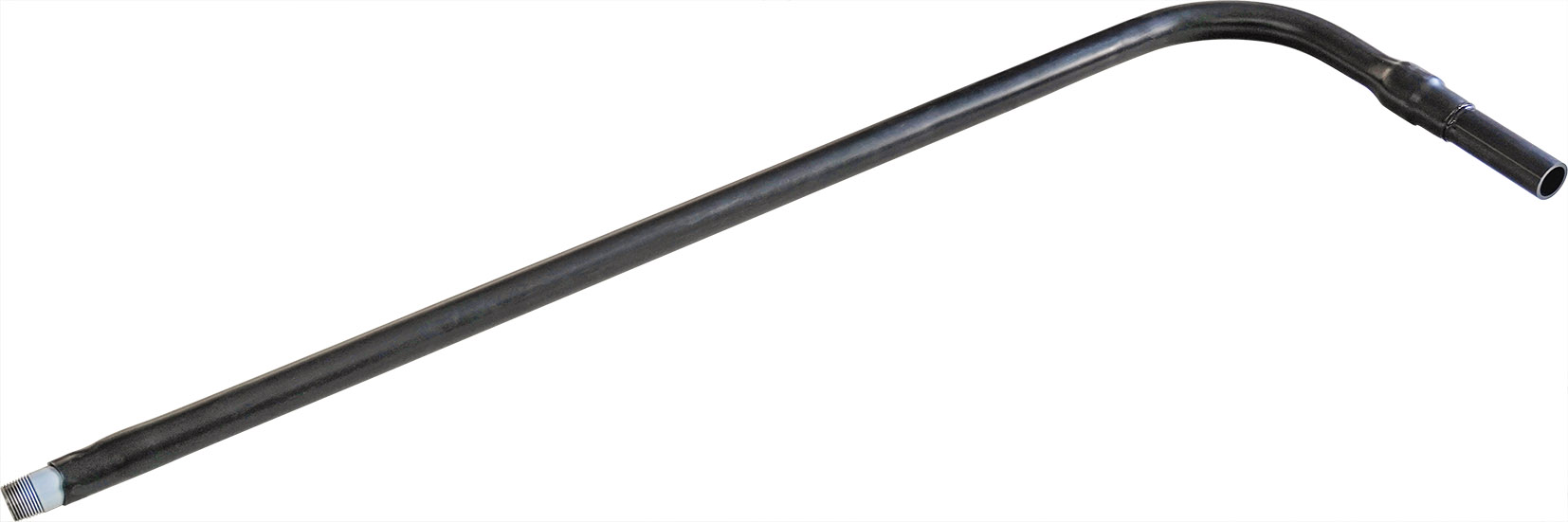

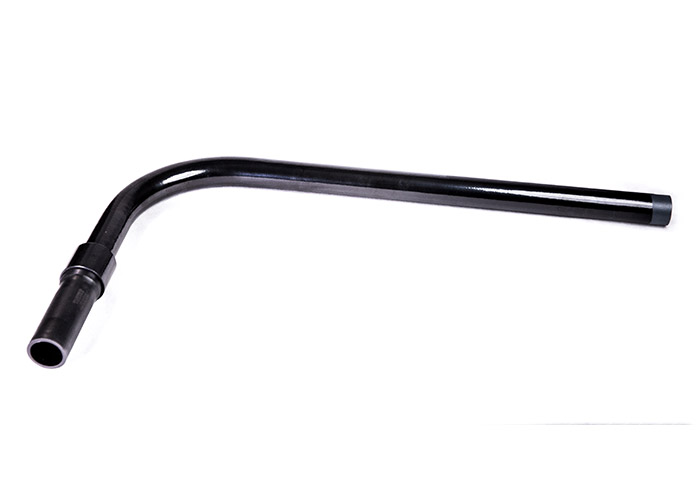

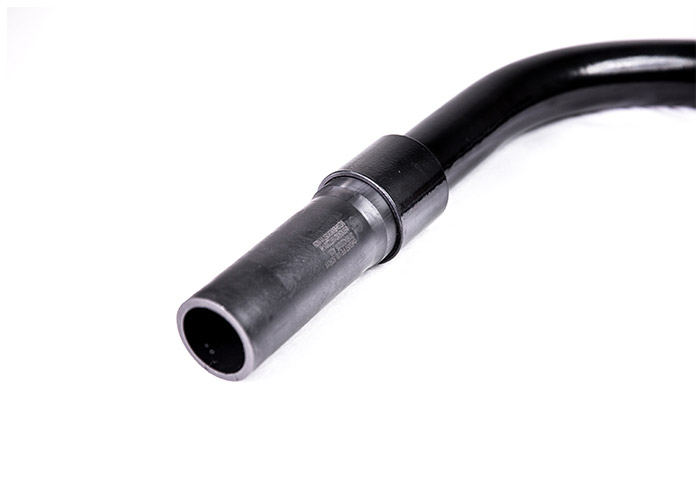

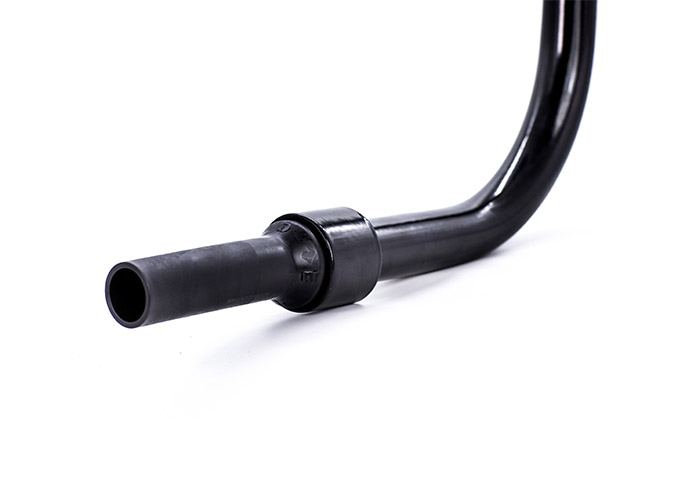

90° Fabricated Welding Steel Transition
Standard Compliance: GB/T 26255
Operating Pressure (Gas Distribution):
PE100 Fittings: Up to 0.8 MPa
PE80 Fittings: Up to 0.64 MPa
Steel Pipe Flexibility: Adjustable section length based on design requirements
End Connections: Available in welded, flanged, or threaded connections
Surface Protection: Standard epoxy resin anti-corrosion coating; 3PE anti- corrosion coating is available upon customer request.
